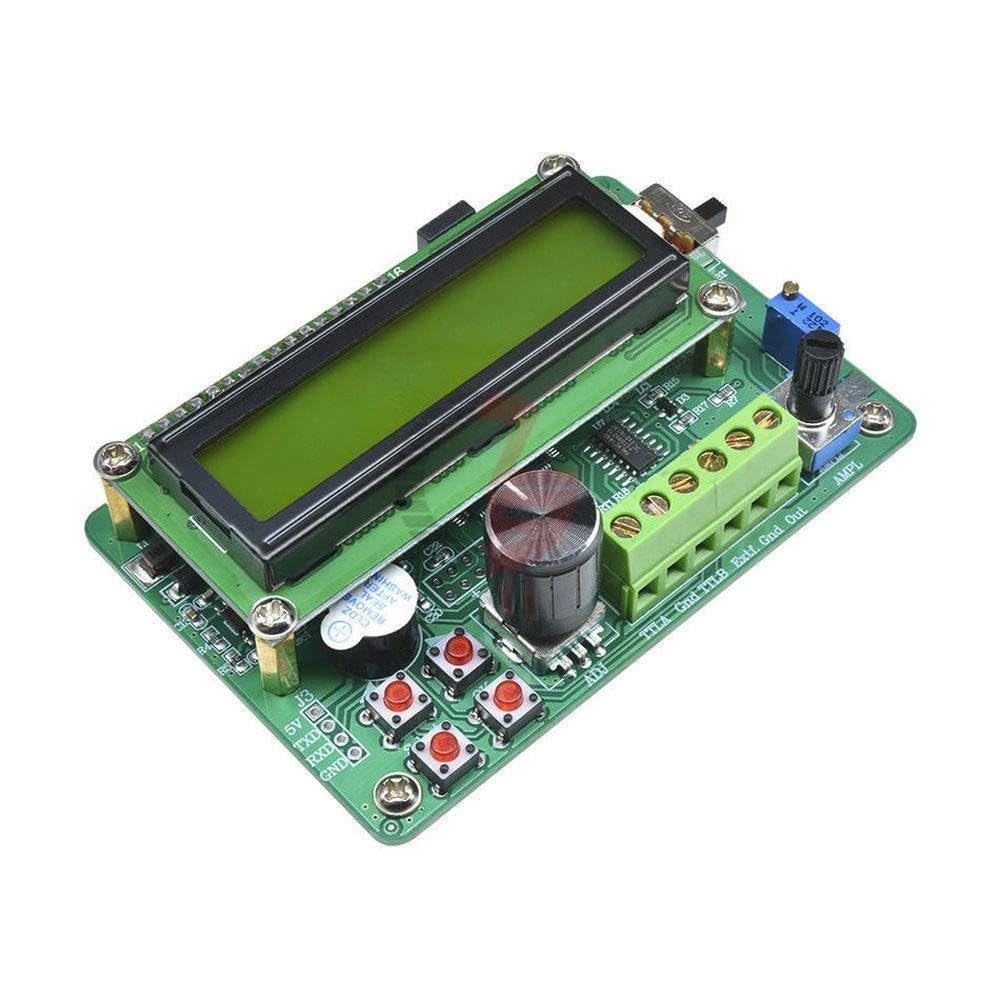

0.01Hz - 5MHz DDS Function Signal Generator Module 1602 LCD Display Sine Triangle Square Wave TTL Output Storage Recall Counter
Product details
| Management number | 220424594 | Release Date | 2026/05/03 | List Price | US$15.49 | Model Number | 220424594 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Output waveforms:Sine / Square / Triangle wave Output amplitude:≥10Vp-p(signal output, no load) Output impedance:50Ω±10%(signal output) DC offset:±2.5V(no load) Display:LCD1602 Frequency range:0.01Hz ~ 5MHz(FY1005) Resolution:0.01Hz Frequency Stability:±1×10-6 Frequency accuracy:±5×10-6 Sine wave distortion:≤0.8% (reference frequency is 1kHz) Trinagle linearity:≥98% (0.01Hz~10kHz) Rise and fall time of square wave:≤100ns Square Wave Duty range:1%~99% TTL Output function: Amplitude:>3Vp-p Fan Out:>20 TTL loads COUNTER function: Counter Range:0-4294967295 Frequency Meter Range:1Hz~60MHz Input Voltage Range:0.5Vp-p~20Vp-p Storage and transferred: 10 set of parameters with storage and recall functions Size:9.5x6.5x3cm Package Included: 1 x DDS Function Signal Generator Module
- 0.01Hz - 5MHz DDS Function Signal Generator Module 1602 LCD Display Sine Triangle Square Wave TTL Output Storage Recall Counter
| Manufacturer | Generic |
|---|---|
| Item model number | WYC_DJFF_10840 |
